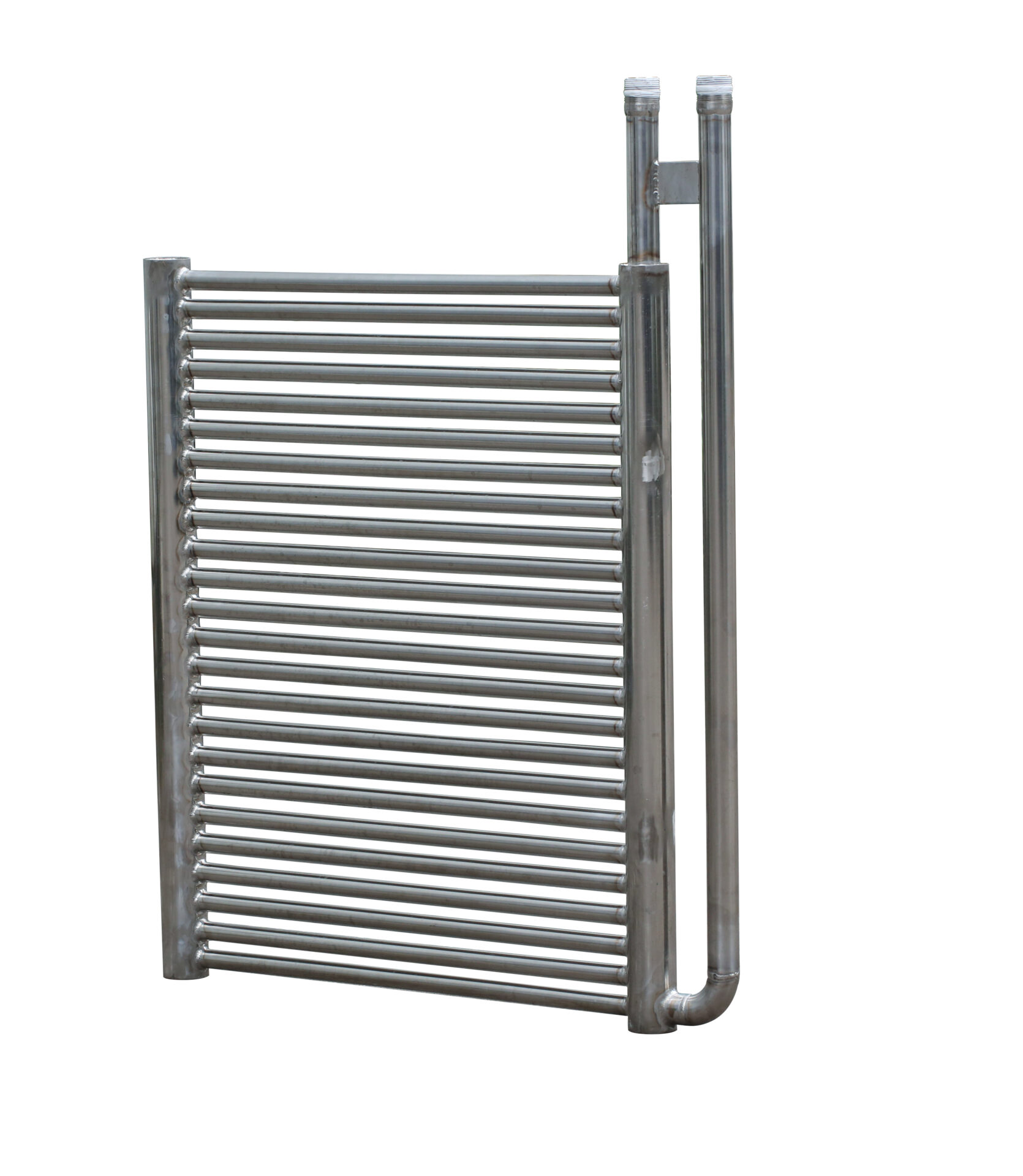

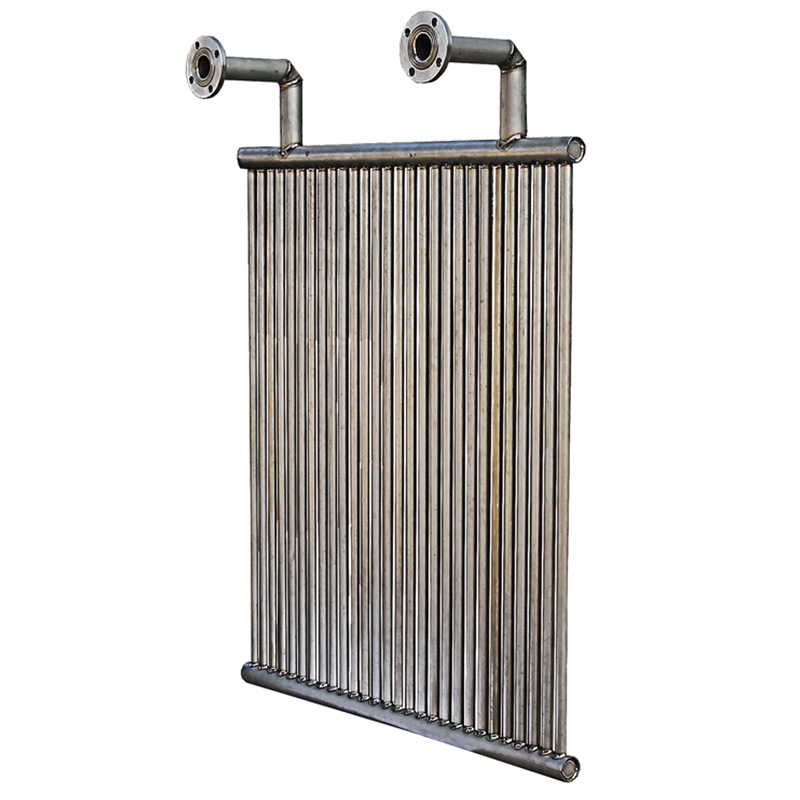

Metallic Heat Exchangers

Empire Pumps specialise in the manufacture of metallic heat exchangers. Our diverse metallic product range is constructed from stainless steel and titanium. The materials are ideal for use with high temperature metal finishing and water based processes. The conductive nature of the metals ensures quick heat up times with reduced surface area of material.

The Empire range of heat exchangers are manufactured using stainless steel or titanium. The robust design allows steam and thermal fluids to be transferred through the heat exchanger at increased pressures up to 6 bar. The higher the pressure capability, the quicker the heat is transferred into the process solution and the faster the tank is heated.

The range can be manufactured in circular, horizontal or vertical designs. Our thicker tube technology offers increased surface area within the same physical size of alternative products. This increased surface area ensures quicker heating of process tanks.

We offer flexible design solutions to suit specific customer requirements. The heat exchangers can be manufactured with floor mounted feet or with a mounting bracket for positioning on the inside of the tank wall. The inlet and outlet ports can be flanged or screwed connections. Extended flexible risers can be fitted to overcome large tank freeboards.
