Air Operated Diaphragm Pumps

  • Polypropylene, PVDF, stainless steel, aluminium
  • Bolted construction offering increased operating pressures
  • Flow rates 0 to 1000 l/min
  • Pump sizes: ¼”, ½”, 1”, 1½”, 2” & 3”

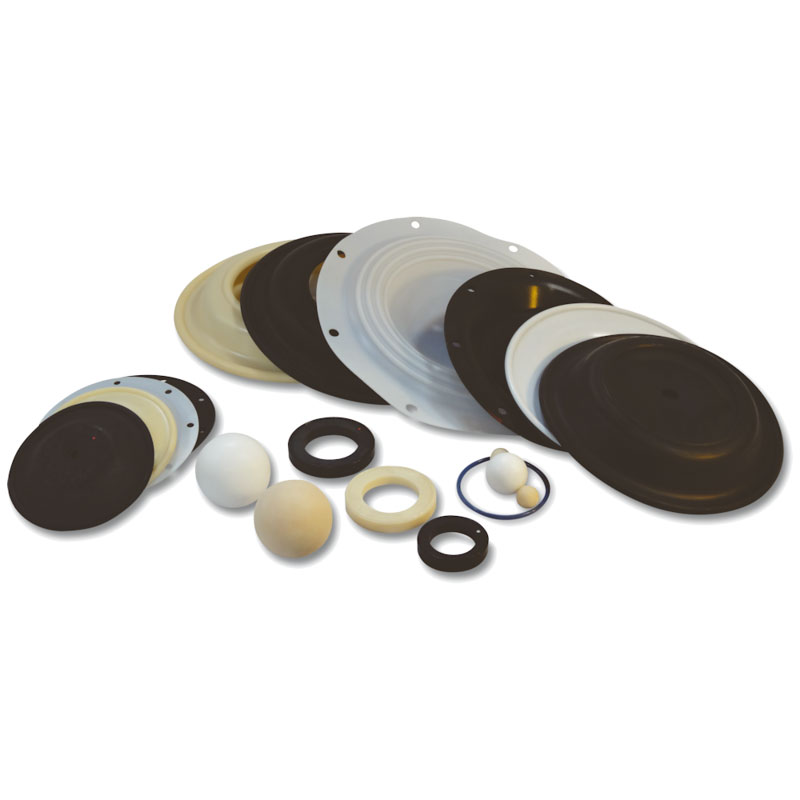

  • Elastomer, diaphragm materials: Nitrile, EPDM, viton, teflon
  • Non-stalling and lube free air valve assembly
  • ATEX models available
  • Suitable for high viscosity and high specific gravity applications

(Also referred to as: AOD, Double Diaphragm Pump, Air Driven Pump, Pneumatic Pump)

Empire Pumps’ extensive range of Air Operated Diaphragm Pumps commonly known as AOD or AODD Pumps, are specifically designed for durability, performance and reliability. The pumps robust construction gives the ability to transfer abrasive and highly viscous solutions, manufactured for use with many industries including chemical, pharmaceutical, wastewater, effluent treatment, metal finishing and many more.

Our air driven pump range vary in size from ¼’’ to 3’’ achieving flow rate capabilities up to 1000 l/min, making them ideal for a variety of chemical transfer applications. Equipment materials of construction are available in polypropylene, PVDF, aluminium and stainless steel.

Our range of Air Operated Double Diaphragm Pumps offer technical benefits when considering the corrosive nature of the chemistries being transferred. The air valve and centre section of our pneumatic pump range is plastic opposed to aluminium. Non-metallic constructed parts are more corrosive resistant should chemicals reach the centre section of the pump.

Furthermore, our pump design utilises bolts opposed to band clamps, ensuing more support to the full surface area of the diaphragms whilst the pump is in operation. The bolted design also provides easier maintenance on strip down and assembly of the pump.

Our pump design offers a centre positioned inlet and outlet port, giving equal flow through each side of the pump. This design feature enables our pump range to achieve 15 to 20% increased flow rate for the equivalent pump size of an alternative manufacturer.

Would you like more information about this product or help in finding the right pump for your application? Give us a call on or get in touch via the enquiry form on our contact page.
